Leírás és Paraméterek

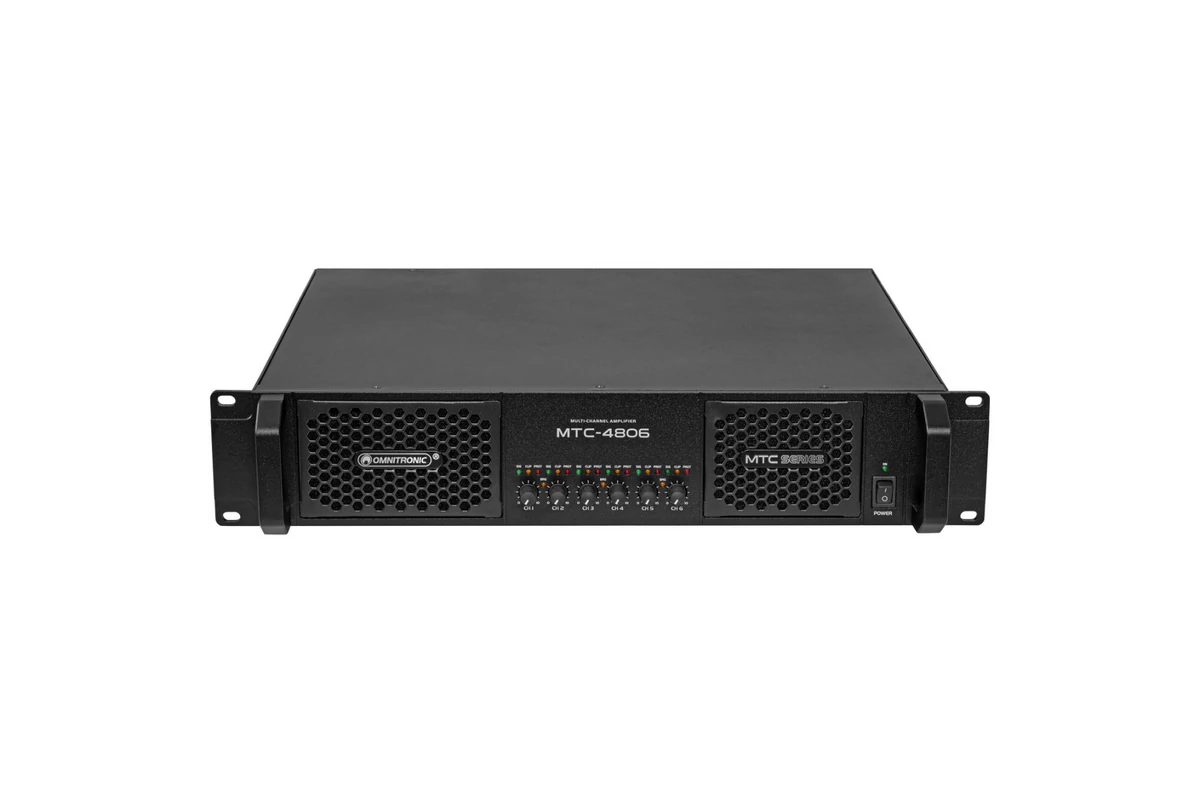

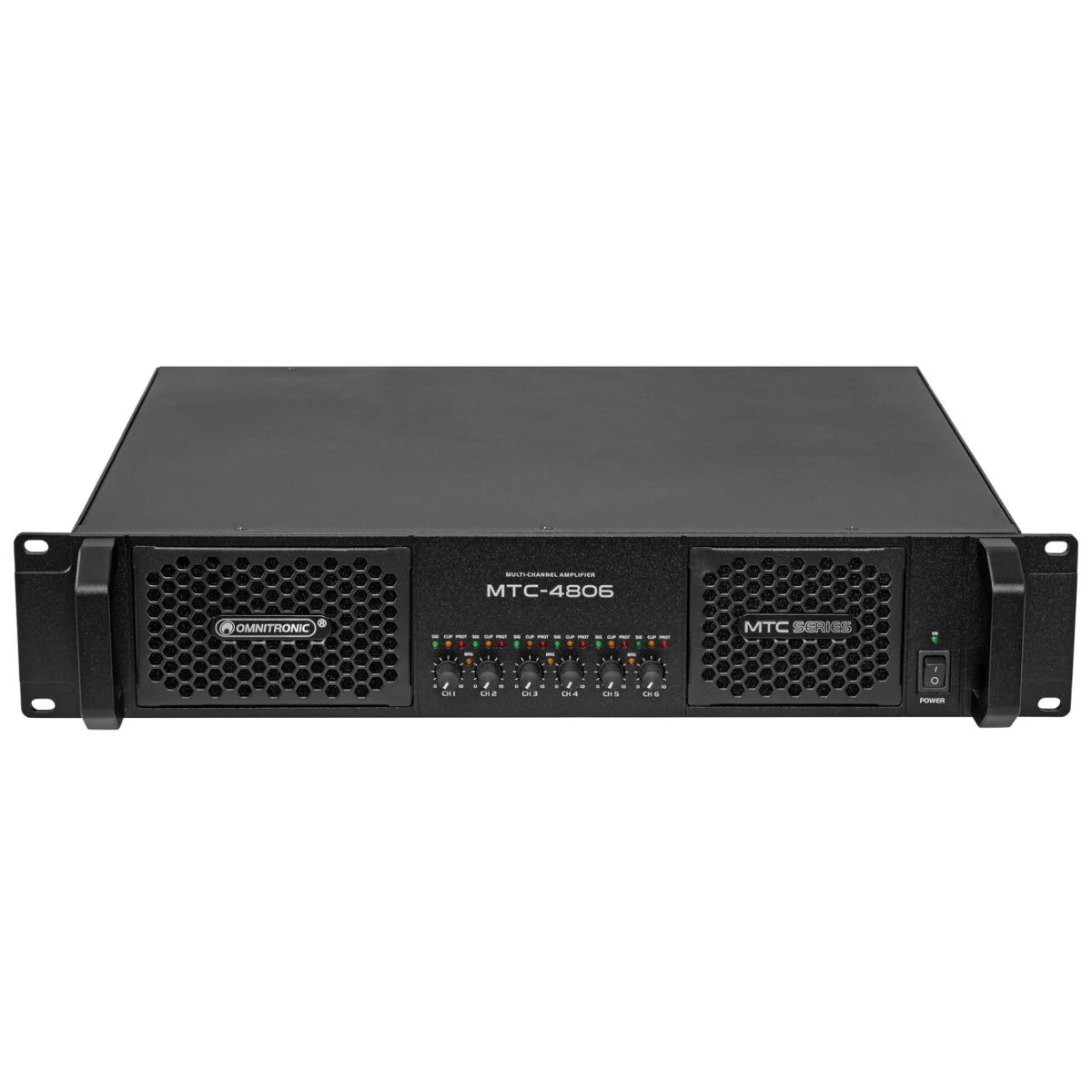

Class D multichannal PA amplifier with SMPS, 6 x 800 W RMS (4 ohms), 6 x 400 W RMS (8 ohms)
- Extremely low weight and height due to integrated switch mode power supply
- 2 operating modes can be selected (stereo or bridge/100V)
- Level control per channel
- (19") 48.3 cm rack installation 2 U
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual
Manuals
Manuals| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 900 W 1/8 power |
| Protection class | Protection class I |
| Output power | 6 x 800 W RMS (4 ohms) |
| 6 x 400 W RMS (8 ohms) | |
| Bridged (8 ohms) | |
| 3 x 1500 W RMS | |
| 3 x 1500 W RMS bridged (100 V) | |
| 6 x 200 W RMS (100 V) | |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length | 1 m detachable |
| Device fuse | 5 x 20 mm, T 10 A Fuse fix on board |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >119 dB |
| THD | <0,05 % at 1 kHz |
| Cooling | 2 x temperature-controlled fan , Air flow from front to rear |
| Impedance | Input:20 kOhm , bal. |
| Input | 10 kOhm , unbal. |
| Gain | 28,2 dB |
| Housing color | Black |
| Circuitry | Class D |
| Damping factor | 350 |
| Control elements | Power switch, level control per channel, mode switch (stereo/bridged) |
| Controls | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED | Power, signal, clip, bridged, protect |
| Connections | Input:line via 6 x 3-pin XLR |
| Link | line via 6 x 3-pin XLR |
| Output | speaker via 6 x screw plug-in terminal |
| Output | 6 x speaker built-in socket (F) |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48,3 cm |
| Depth | 40,8 cm |
| Height | 8,8 cm |
| Weight | 8,72 kg |
