Leírás és Paraméterek

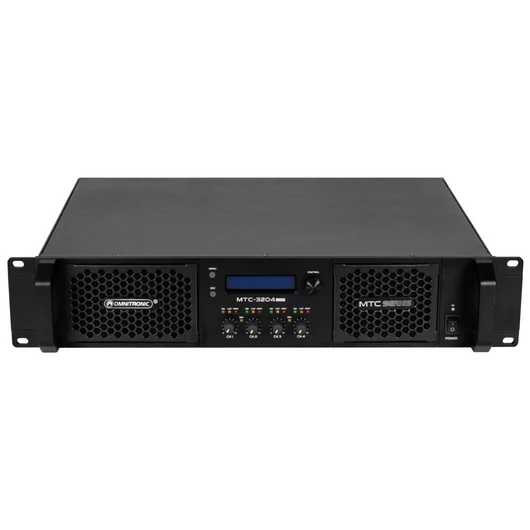

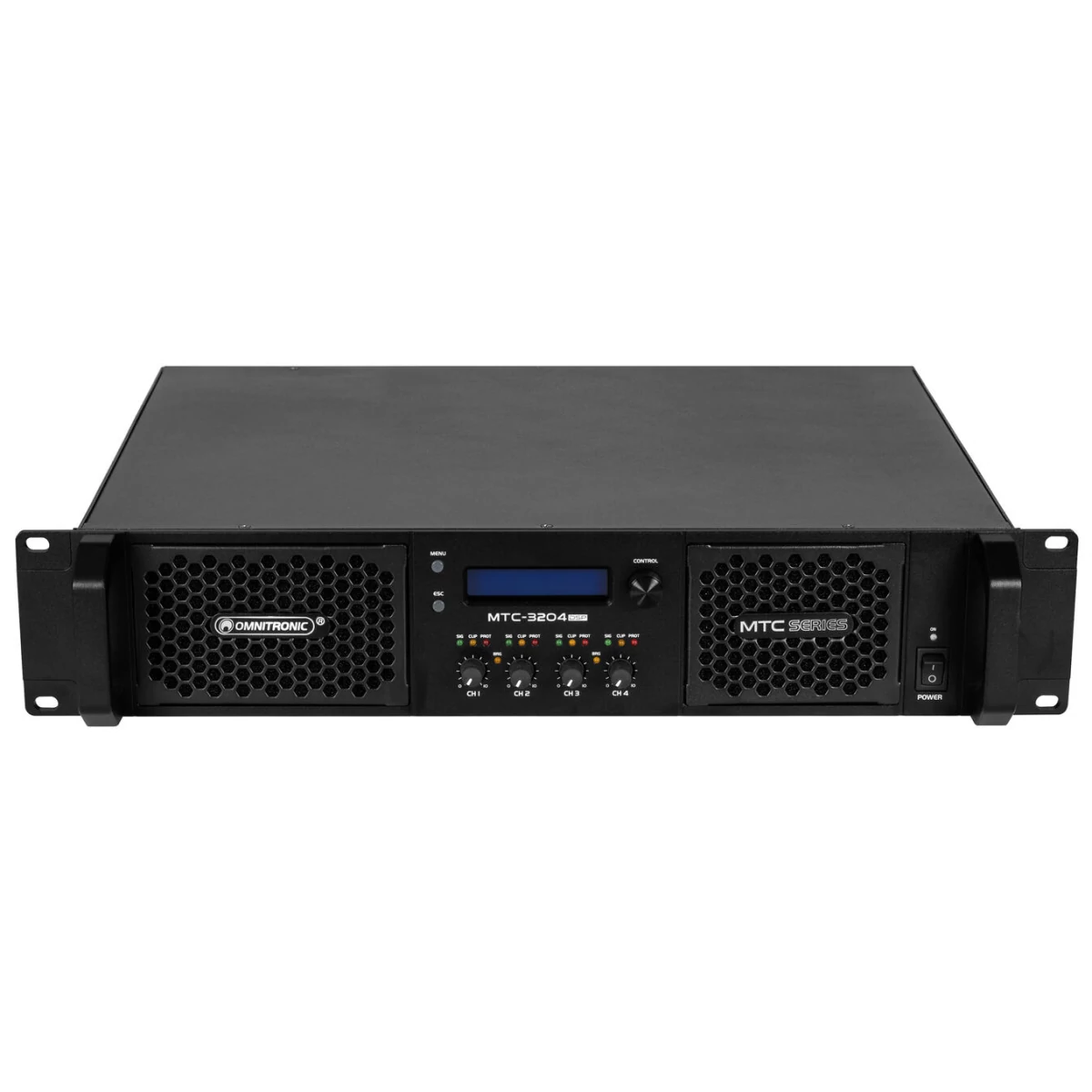

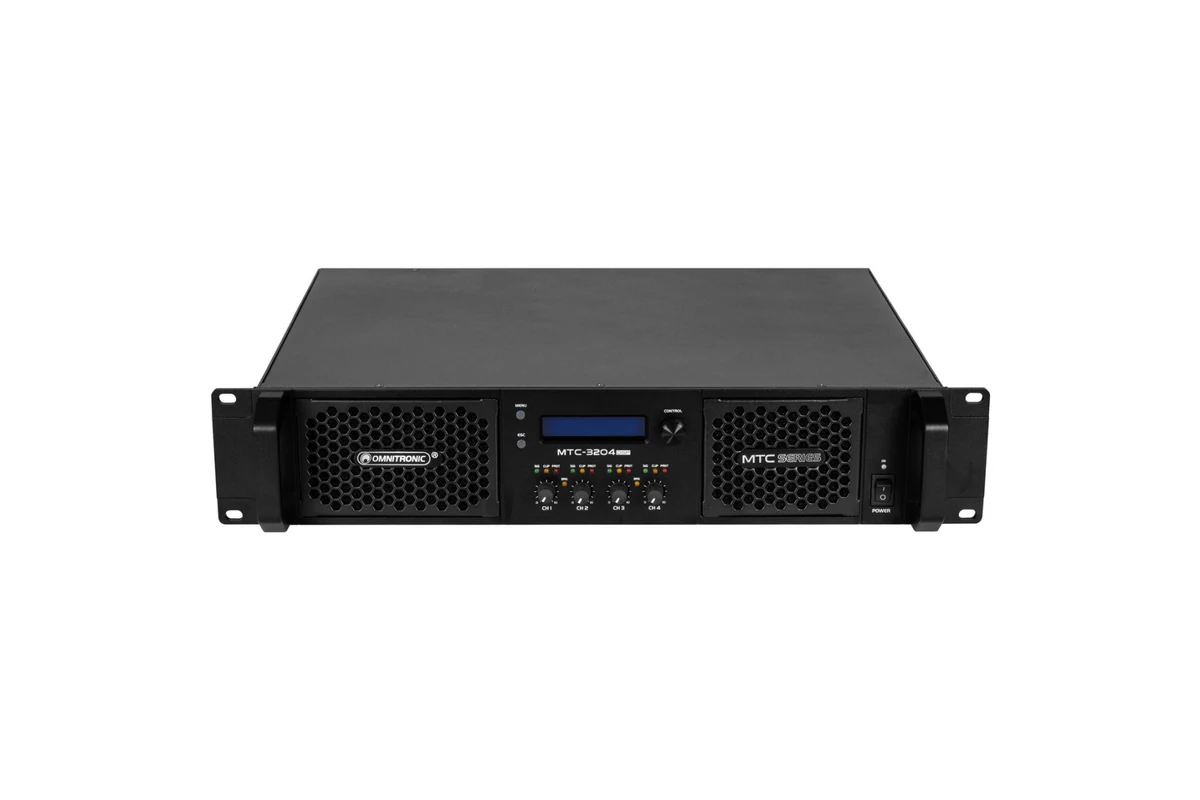

4-channel PA amplifier with DSP & SMPS, 4 x 800 W 4 Ohm, 4 x 400 W 8 Ohm
- Efficient Class D technology
- Full configuration and real-time network communication via the built-in Ethernet interface
- The intelligent software for allows convenient control with a computer
- Presets are easy to store, transfer and manage
- Up to 100 user presets storable in the device via software
- Digital signal processor FIR Filter
- Sample rate: 96 kHz
- 2 operating modes can be selected (stereo or bridge/100V)
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- 10-band parametric EQ per input and output
- Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
- Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- LCD display
- 2 Ethernet ports for easy wiring
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
firmware can be updated - The device is cooled by temperature-controlled fan
- Highly efficient Air flow from front to rear
- (19") 48.3 cm rack installation 2 U
- Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better
Package contents
- 1 x amplifier, 1 x power cord, 1 x user manual
Manuals
Manuals| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 600 W 1/8 power |
| Protection class | Protection class I |
| Output power | 4 x 800 W RMS (4 ohms) |
| 4 x 400 W RMS (8 ohms) | |
| Bridged (8 ohms) | |
| 2 x 1500 W RMS | |
| 4 x 200 W RMS (100 V) | |
| 2 x 1500 W RMS bridged (100 V) | |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length | 1,2 m detachable |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >119 dB |
| THD | <0,05 % at 1 kHz |
| Network connection | Protocol:Ethernet TCP/IP via 2x RJ-45 (F) mounting version |
| DSP | Digital signal processor FIR Filter |
| Cooling | 1 x temperature-controlled fan , Air flow from front to rear |
| Impedance | Input:20 kOhm , bal. |
| Input | 10 kOhm , unbal. |
| Gain | 28,2 dB |
| Bridged 34,2 dB | |
| Filter | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct; 48db/Okt |
| Delay | Input:0 - 2000 ms |
| Housing color | Black |
| Sample rate | 96 kHz |
| Circuitry | Class D |
| Damping factor | 350 |
| Display type | LCD display |
| Control elements | Power switch, encoder, level control per channel, mode switch (stereo / bridged/100V), menu |
| Controls | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED | Power, signal, clip, bridged, protect |
| Connections | Input:line via 4 x 3-pin XLR |
| Link | line via 4 x 3-pin XLR |
| Output | DSP via 4 x 3-pin XLR (F) mounting version |
| Output | speaker via screw plug-in terminal |
| Output | 4 x speaker built-in socket (F) |
| Output | Speaker (bridge) via 2 x speaker built-in socket (F) |
| 2 x RJ-45 (F) mounting version | |
| PC connect | DXO Software via RJ-45 (F) mounting version, firmware can be updated |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48,3 cm |
| Depth | 40,8 cm |
| Height | 8,8 cm |
| Weight | 7,60 kg |
| Operating system | Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better |
