Az itt látható egyedi termékleírások és képek a DJSoundLight Kft tulajdonát képezik.8-channel audio mixer with 8 outputs and matrix

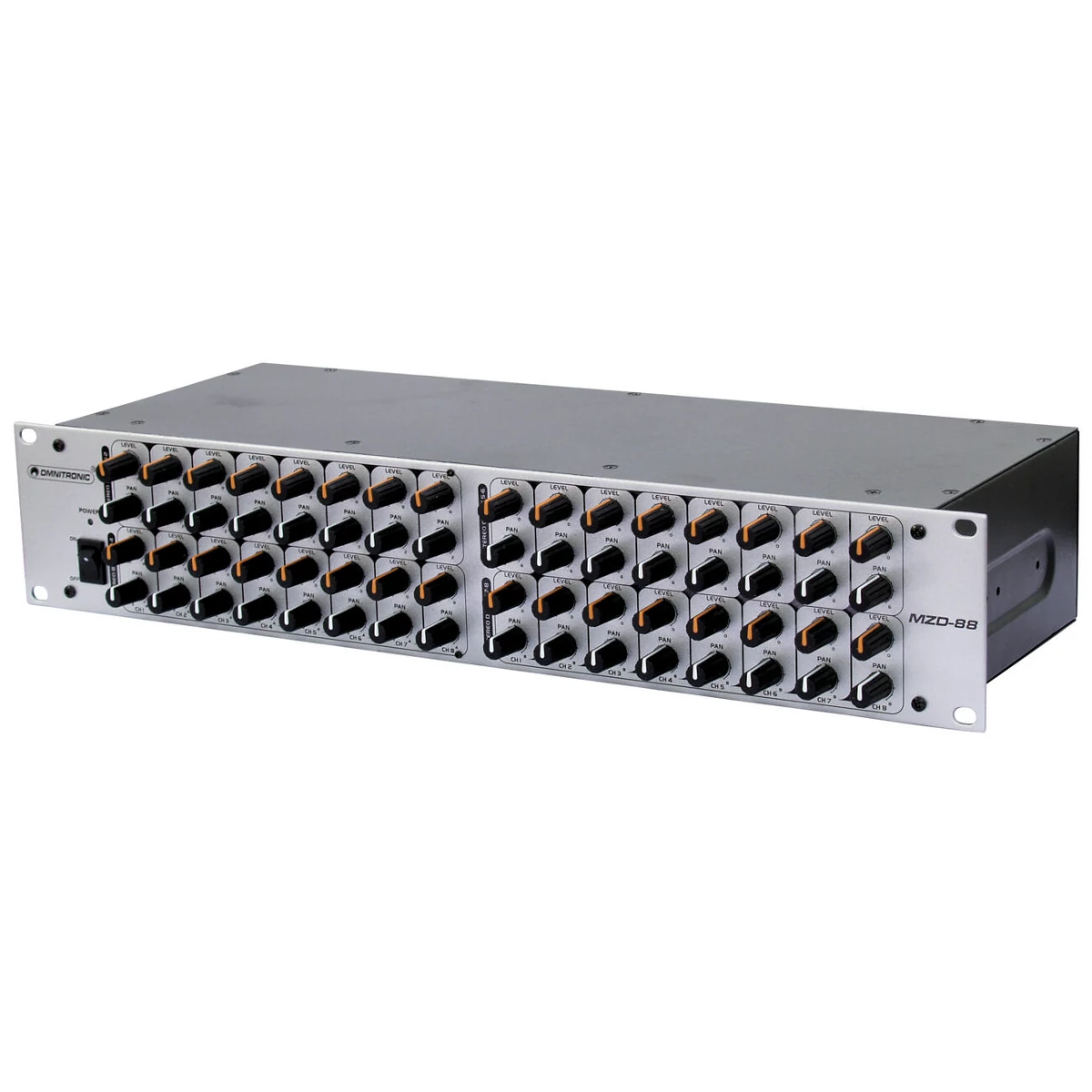

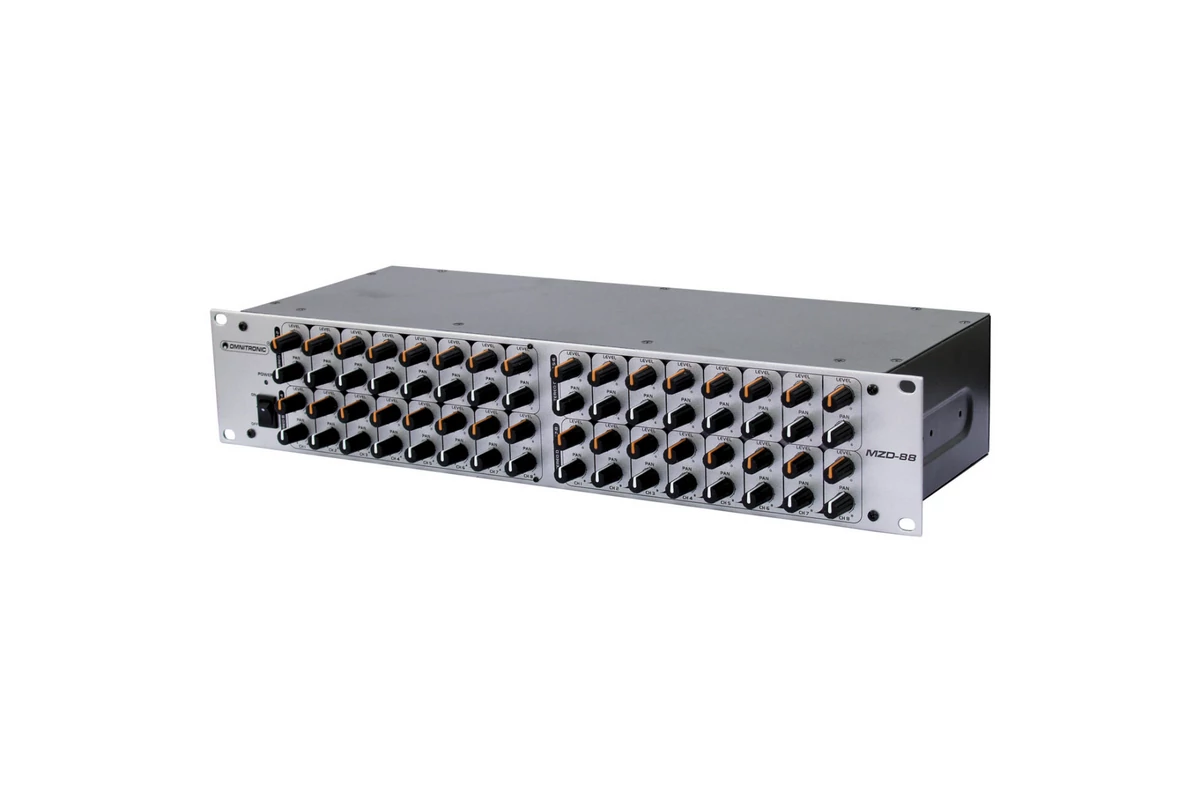

The OMNITRONIC MZD-88 is an audio mixer with an analog matrix of 8 input and 8 outputs which allows for multiple output configurations and inputs mixing. The 8 outputs are divided in 4 groups. Thus it's possible to supply 4 different PA zones with a stereo output by routing different input signals to these zones without having to change the cable configuration. It's also possible to obtain 8 outputs with different mixing as every input has its own level and PAN controls. Perfect for any place where multi-zone or multi-room solutions are required, just like in theme parks, conference centers, schools or as the case may be. By the way, the MZD-88 could also be used for personal monitoring.
The OMNITRONIC MZD-88 is an audio mixer with an analog matrix of 8 input and 8 outputs which allows for multiple output configurations and inputs mixing. The 8 outputs are divided in 4 groups. Thus it's possible to supply 4 different PA zones with a stereo output by routing different input signals to these zones without having to change the cable configuration. It's also possible to obtain 8 outputs with different mixing as every input has its own level and PAN controls. Perfect for any place where multi-zone or multi-room solutions are required, just like in theme parks, conference centers, schools or as the case may be. By the way, the MZD-88 could also be used for personal monitoring.
- Matrix input assignment: 8 audio inputs are freely assignable to each of the 8 outputs
- Division of the 8 outputs into 4 groups; each with separate level and pan control per channel
- Ultra flexible configuration modes; distributes the signal of up to 8 audio sources to e.g. 8 mono zones or 4 stereo zones, each with a different output signal
- Inputs and outputs via balanced XLR jacks
- Frequency range 20-20000 Hz
- Rack installation, 2 U
- (19") 48.3 cm rack installation 2 U
Manuals
Manuals| Power supply | 115/230 V AC, 50/60 Hz |
| Power consumption | 10,00 W |
| Power connection | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range | 20 - 20000 Hz |
| Impedance | Input 10 kOhm |
| Gain | 12 dB |
| Dynamic range | 100 dB |
| Max. level | Input:+21 dBu |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48,3 cm |
| Depth | 19,5 cm |
| Height | 8,9 cm |
| Weight | 3,60 kg |
