Leírás és Paraméterek

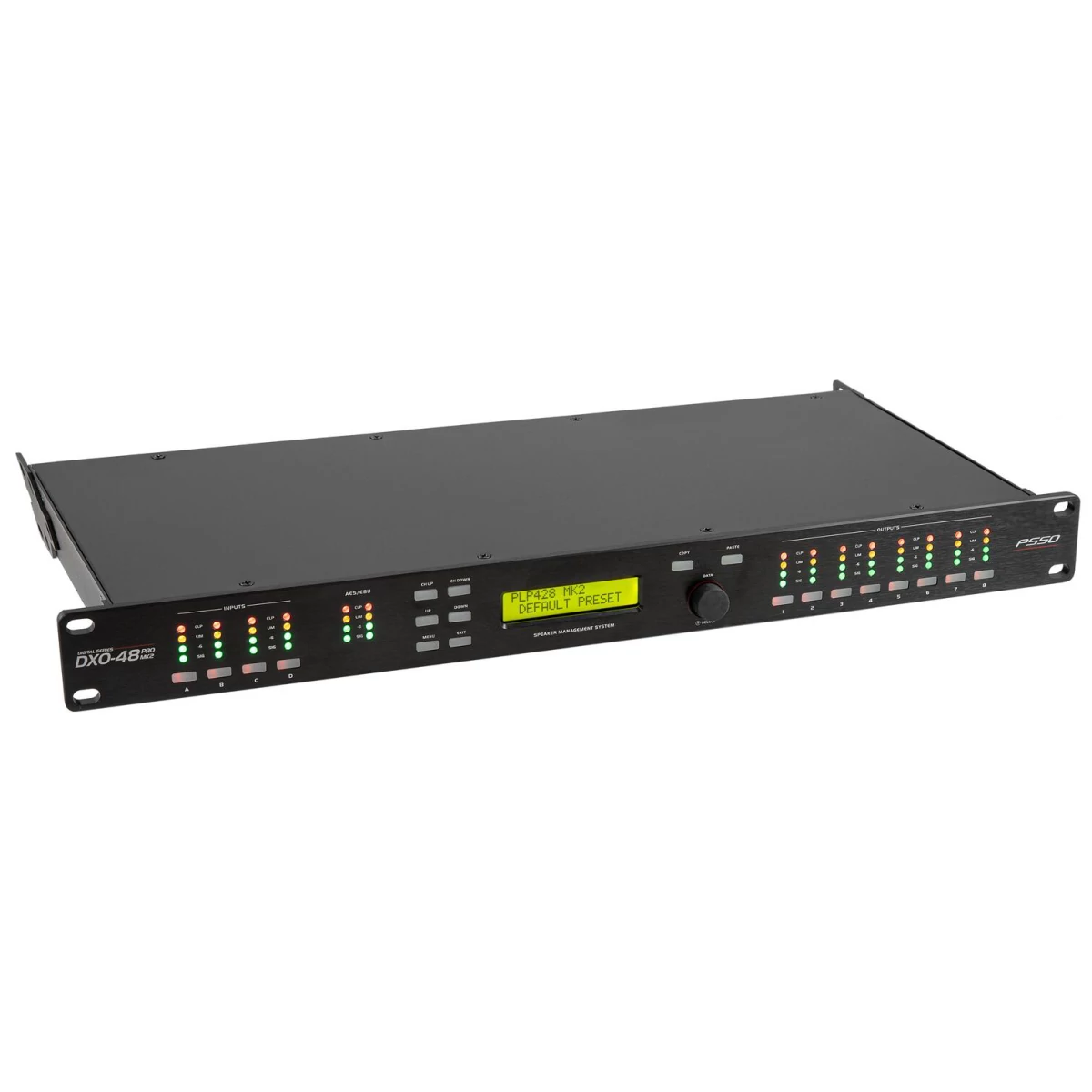

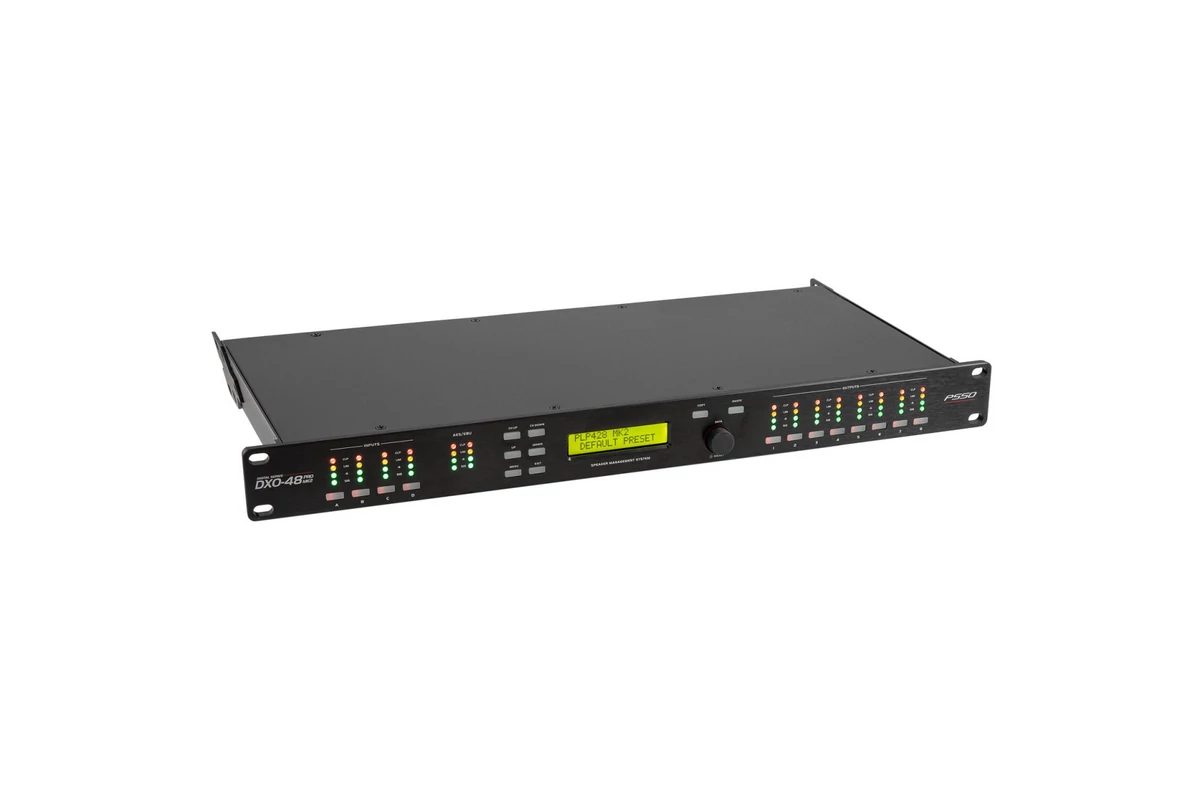

Digital speaker management system with real-time network communication, 4 inputs and 8 outputs
- Digital network speaker management system with 64-bit processing
- Premium components ensure excellent sound-features
- Flexible routing configurations for all standard mono and stereo output operating modes
- 4 analog inputs and 1digital AES/EBU interface (XLR)
- 8 analog outputs (XLR)
- 10-band parametric EQ per input and output
- Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
- Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
- Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
- Real-time analyzer function (RTA)
- FIR filters with 8 x 384 taps
- The intelligent software for PC and Mac allows convenient control with a computer
- Full configuration and real-time network communication via the built-in Ethernet interface
- Presets are easy to store, transfer and manage
- Up to 100 user presets storable in the device via software
- Control of all functions also possible via the controls at the front panel
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit VU meter
- Mute switch with LED indicator per input and output
- Up to 2000 ms signal delay adjustable for the inputs and 50 ms for the outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- 4-band compressor for all inputs and outputs
- Switchable phase
- Lock function for prevents undesired changes to settings
- 2 Ethernet ports for easy wiring
- Digital signal processor FIR Filter
- Controlling by DXO-Control App
- Monochrome LCD display
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
The firmware can be updated via the PC connection - (19") 48.3 cm rack installation 1 U
- Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better
Package contents
- 1 x controller, 1 x power cord, 4 x feet
Manuals
Manuals| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 10,00 W |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range | 10 - 40000 Hz |
| THD | <0,005 % at 1 kHz |
| Network connection | Protocol:Ethernet TCP/IP via 2x RJ-45 (F) mounting version |
| DSP | Digital signal processor FIR Filter |
| Crossover frequency | 20-20000 Hz |
| Impedance | Input:10,5 kOhm , unbal. |
| Input | 21 kOhm , bal. |
| Input | XLR (AES/EBU) 110 Ohm |
| Output | 50 Ohm |
| Gain | Output:-50 dB to +12 dB |
| Filter | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct; 48db/Okt |
| Delay | Input:0 - 2000 ms |
| Dynamic range | Input:125 dB |
| Output | 120 dB |
| Control | DXO-Control App |
| Sample rate | 96 kHz |
| Display type | Monochrome LCD display |
| Connections | Input:line via 4 x 3-pin XLR |
| Output | line via 8 x 3-pin XLR |
| Input | XLR (AES/EBU) via 1 x 3-pin XLR |
| 2 x RJ-45 (F) mounting version | |
| Max. level | Input:+24 dBu |
| Output | +12 dBu |
| PC connect | DXO Software via RJ-45 (F) mounting version, firmware can be updated |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48,3 cm |
| Depth | 18,0 cm |
| Height | 4,45 cm |
| Weight | 2,96 kg |
| Operating system | Win XP, Win Vista, Win 7, Win 10, OS X 10,5 or better |
