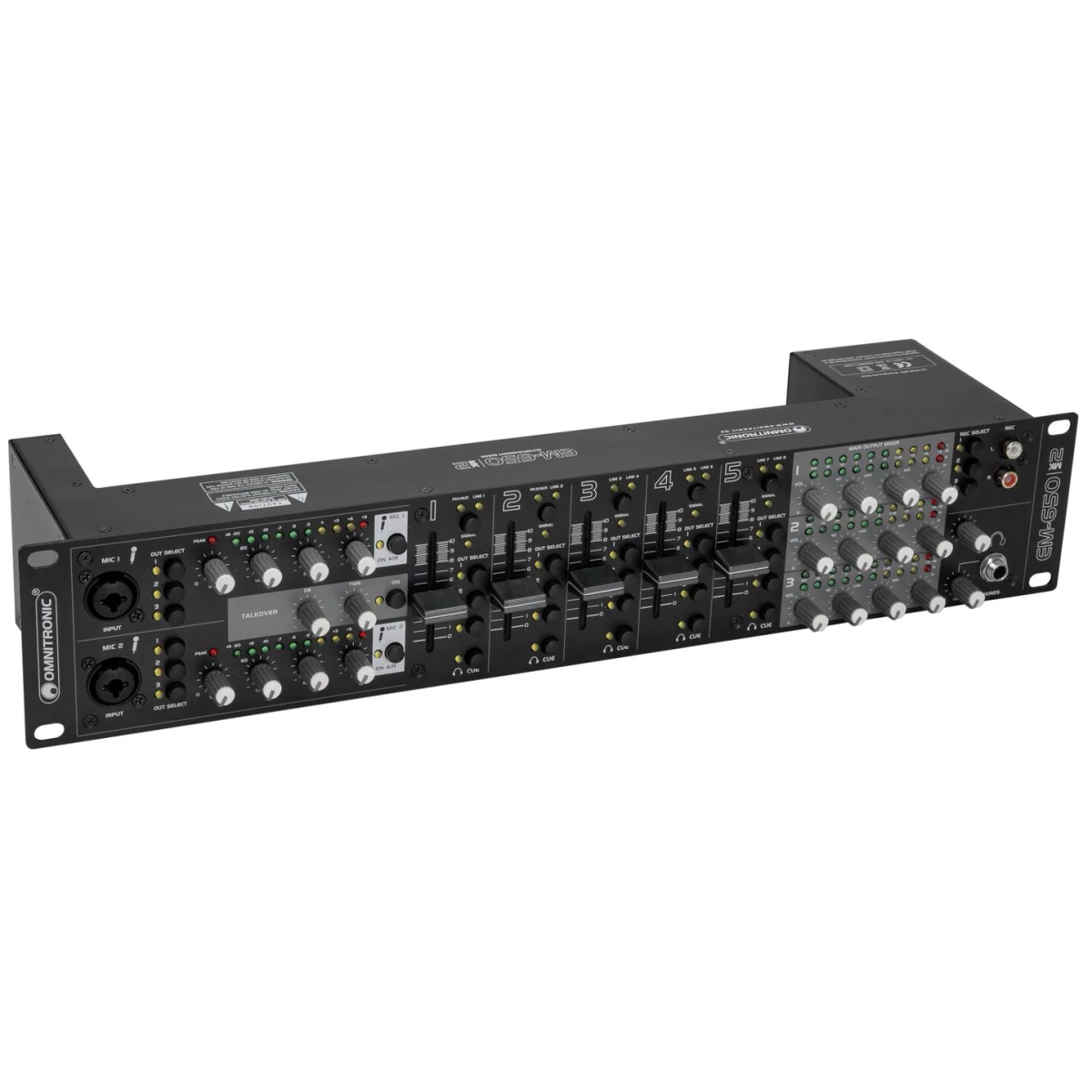

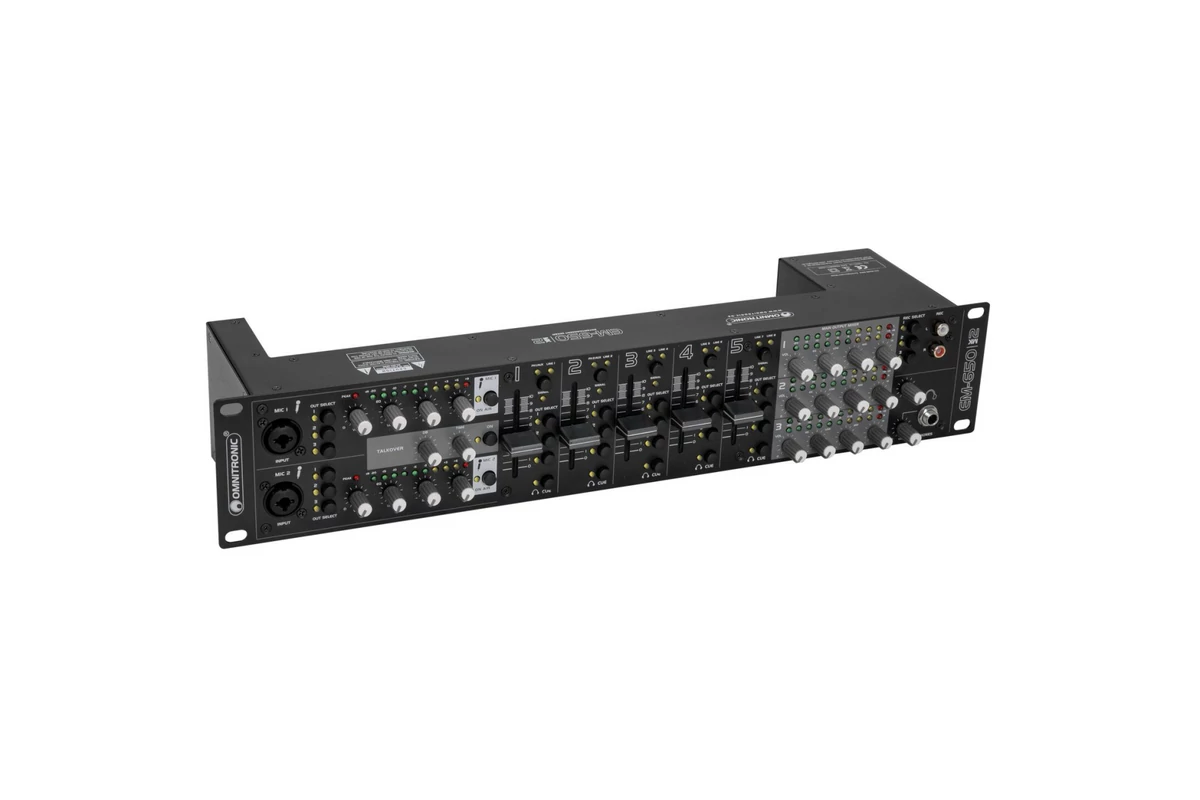

Multifunctional 5+2-channel mixer with 3 zones, black
- 5 input channels with recessed gain controls on the rear panel, signal LED and smooth channel faders
- 2 separate microphone channels with level control, 3-way equalizer and talkover button
- Talkover level and response time adjustable
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 3 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
- 2 record outputs (independent of the master channels) with on/off switch for microphone signals
- 9 line inputs and 2 line/phono inputs via RCA jacks
- 2 microphone inputs via combo jacks (XLR/6.3 mm)
- 3 master outputs (optionally XLR/RCA) and 2 record outputs via RCA jacks
- (19") 48.3 cm rack installation 2 U
Manuals
Manuals| Power supply | 230 V AC, 50 Hz |
| Protection class | Protection class II |
| Power connection | Power supply cord with Euro plug (provided) |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >60 dB line |
| >70 dB phono | |
| THD | Line/phono <0,02 % at 1 kHz |
| Gain | Microphone 52 dB |
| Line 17 dB | |
| Phono 53 dB | |
| Housing color | Black |
| Control elements | Power switch, regular talkover, source selector |
| Status LED | Signal, chanal level meter, master level meter, peak, chanal source; CUE, Talkover, ON AIR, Routing |
| Connections | Output:master via 3 x stereo RCA |
| Input | line/phono via 2 x stereo RCA |
| Input | Microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input | 9 x stereo RCA |
| Output | master via 3 x 3-pin XLR |
| Output | master via 3 x stereo RCA |
| Rec. via 2 x stereo RCA | |
| Output | headphones via 1 x 6.3-mm-jack (bal.) |
| Input channels | 2 x stereo with line-phono switch via RCA, channel control via fader |
| 3 x stereo via RCA, channel control via fader | |
| 2 x mono via XLR or jack | |
| Housing design | (19") 48.3 cm rack installation 2 U |
| Dimensions | Width:48,3 cm |
| Depth | 14,8 cm |
| Height | 8,9 cm |
| Weight | 3,00 kg |
